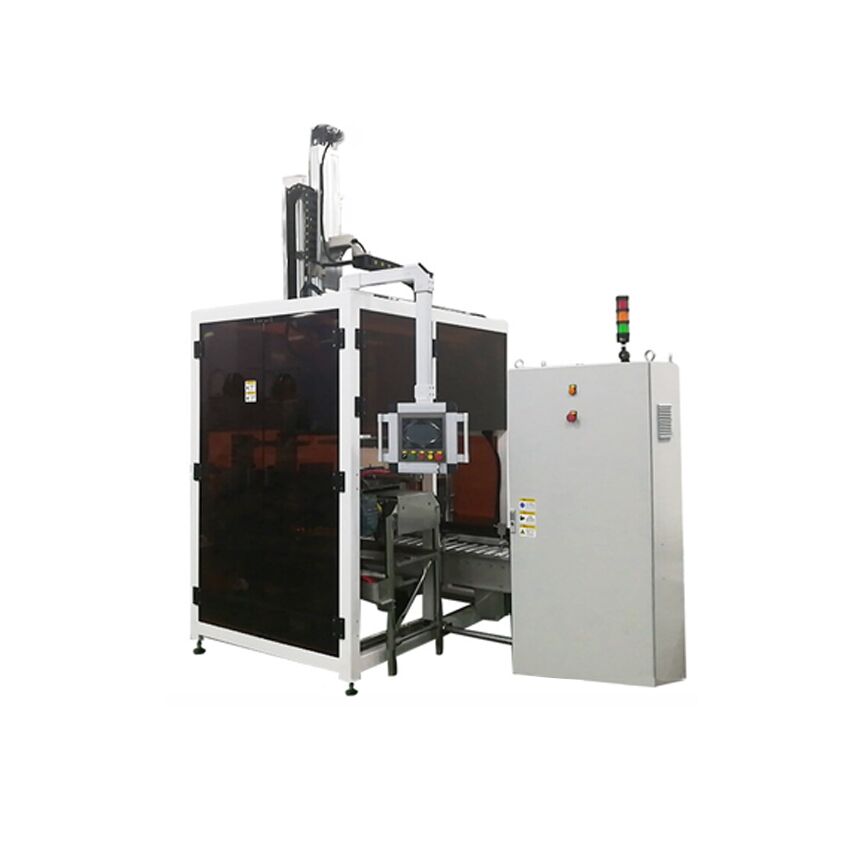

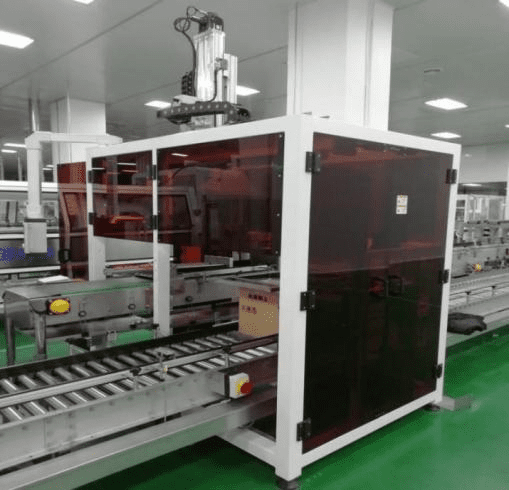

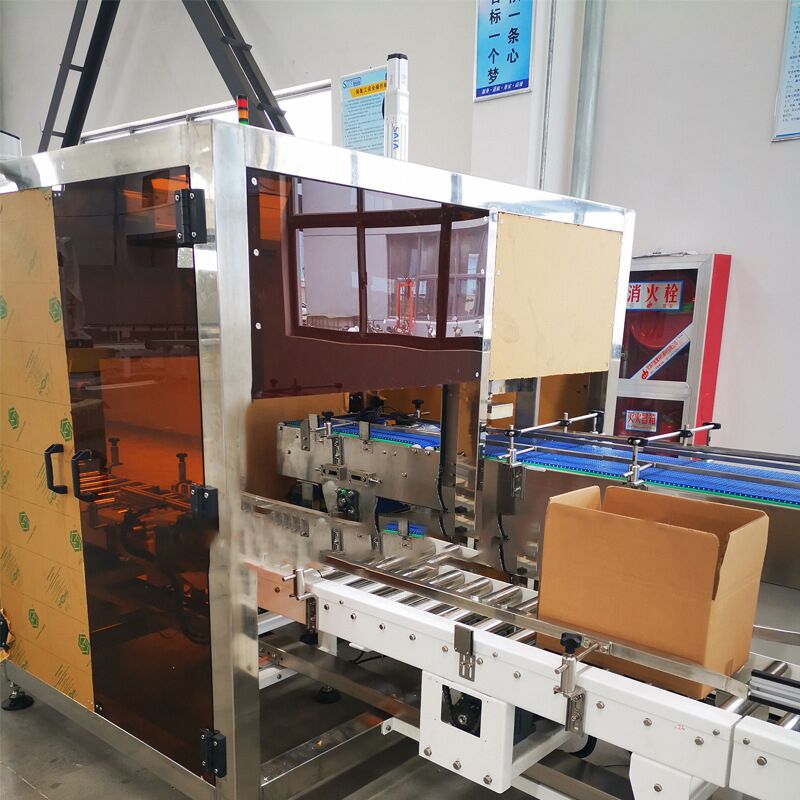

Automatic grasp type carton filling machine

The equipment is an intelligent automatic cartooning machine, which uses a high-speed dispensing device to pack various containers, which can pack bottles, boxes, bags, special-shaped items, etc.
This machine is controlled by a PLC+ touch Screen.
It is equipped with safety devices such as material shortage alarm shutdown, no material, and no packing.
This equipment is convenient to operate and maintain,
It can reduce the labor cost of production and is an indispensable equipment for automated mass production.

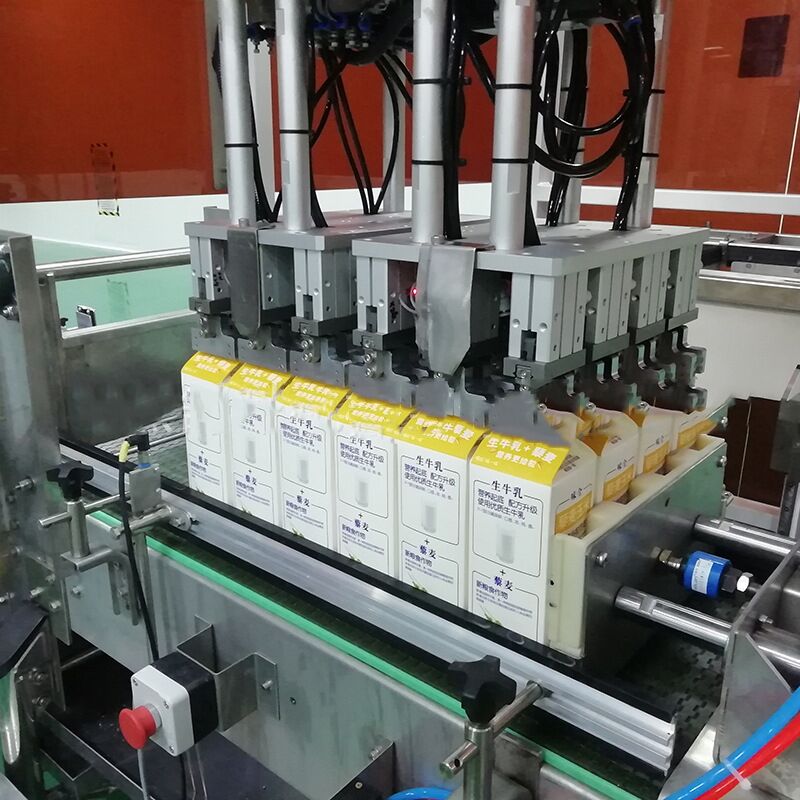

The packing fixture can use suction heads, gripper hands, etc., to put the material into the open carton, and when the fixture is lifted, the carton will be discharged and sent to the sealing machine. It is driven by a servo motor.
This machine adopts PLC + touch display control, is equipped with a box shortage alarm device, and has the safety protection of no boxes and no packing.
All electrical components are selected from internationally famous brands, and the performance of the whole machine is stable and reliable.
This machine is widely used in food, pharmaceutical, daily chemical, beverage, and other industries.

Model	RP-GC6
Capacity	2-6 cartons/min （can make linkage control)
Carton size(L X W X H)	（200-500）mm×（150-500）mm×（150-500）mm ( can be customerized )
Standard power consumption	6 kw
Standard air consumption	0.6-0.8Mpa
Machine weight	800kg
Power supply	380 V, 3 phase, 50/60 HZ
