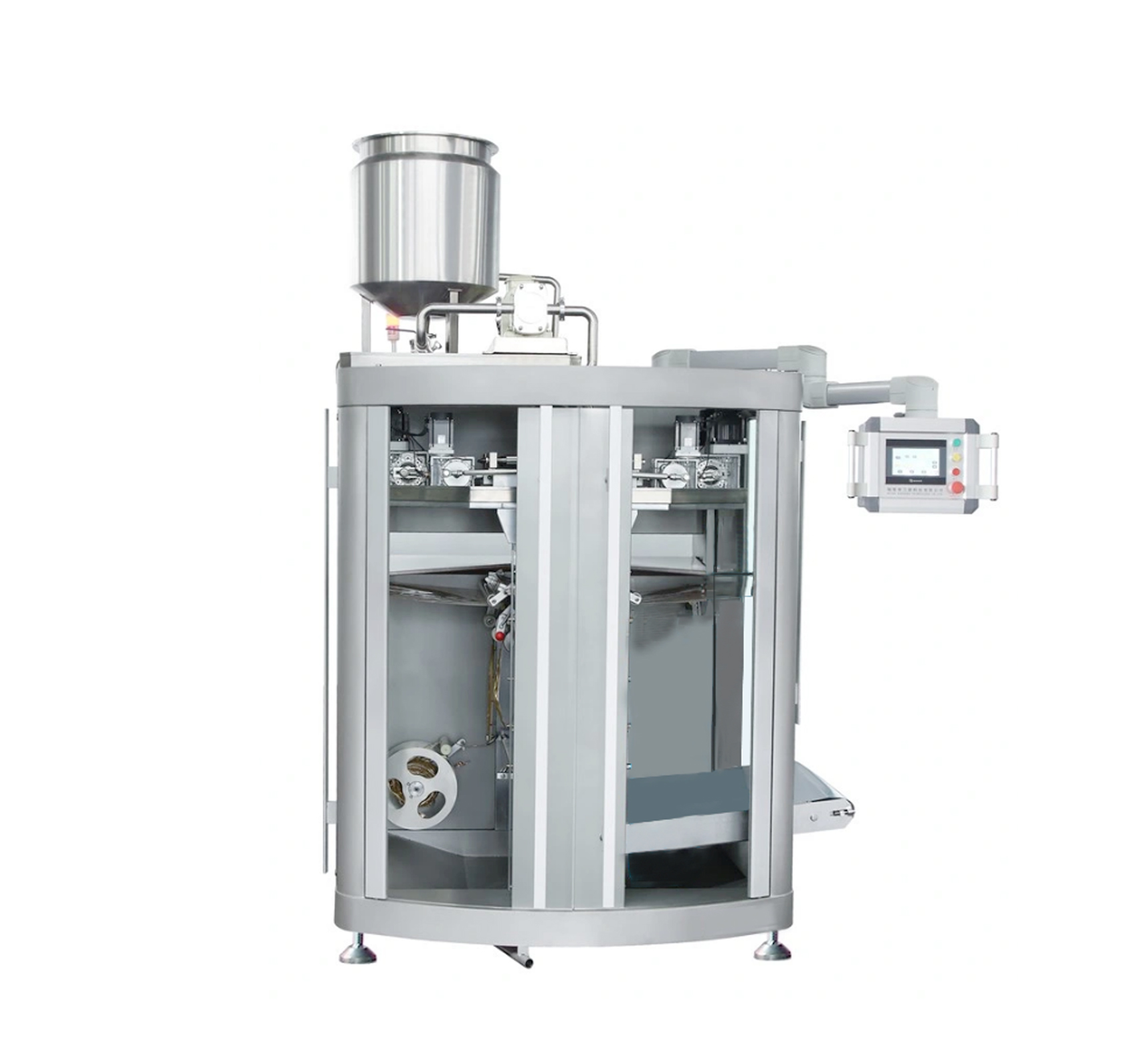

RL-FS500/900/1200 flat sachet liquid packing machine

Category: Flat Sachet Machinery Labels: Flat sachet pack, Liquid pack, Multilane

It is suitable for automatic packaging of liquid paste products in daily chemical, food, health care, and pharmaceutical industries, such as mouthwash, cream, toothpaste, energy supplement, syrup, ointment, etc.
Servo motor-driven, PLC control speed adjustable.
Easy operation, smooth performance, low noise, convenient to maintain.
Photoelectric tracking system with the precise position of both sides.
Sachet length is easy to adjust on the touch screen without changing mold.
Automatic sealing temperature control function, strong adaptability to package materials.
Quick connection for changing film structure, easy maintenance.

Through advanced HMI and PLC technology, the functions of longitudinal sealing, transverse sealing, filling, notched cutting, longitudinal cutting, fracture line making, and transverse cutting can be adjusted.
Accuracy in page correcting, automatic counting, and photoelectric tracking systems is adopted to ensure the automatic correcting of the double-face printing design on packing bags.
Equipped with a precision measuring cup metering system, multi-row synchronization, and single row can be adjusted infinitely fine, with high measuring precision. It is specially designed to push and pull the whole metering plate, and each bag can be adjusted conveniently and accurately.
The vertical and horizontal seals are formed simultaneously, and the production date and batch number are embossed in steel.

Model	RG-FS500	RG-FS900	RG-FS1200
Lanes number	3-4	4-8	6-10
Max. reel width	500mm	900mm	1200mm
Sachet width range	32-105mm	32-105mm	35-105mm
Sachet length range	50-300mm	50-300mm	50-300mm
Filling volume	1-100ml	1-100ml	1-100ml
Capacity	30-60bags/min/lane	30-60bags/min/lane	30-60bags/min/lane
Standard power consumption	10kw	15KW	15KW
Standard air consumption	0.8MPA 0.8m3/min	0.8MPA 0.8m3/min	0.8MPA 0.8m3/min

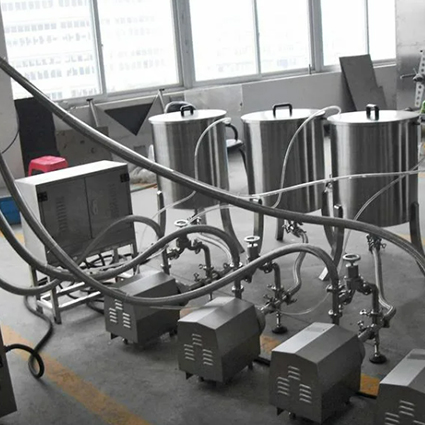

Filling method	Liquid pump	Liquid pump	Liquid pump
Power supply	380V 50HZ/60HZ , 3P	380V 50HZ/60HZ, 3P	380V 50HZ/60HZ, 3P
