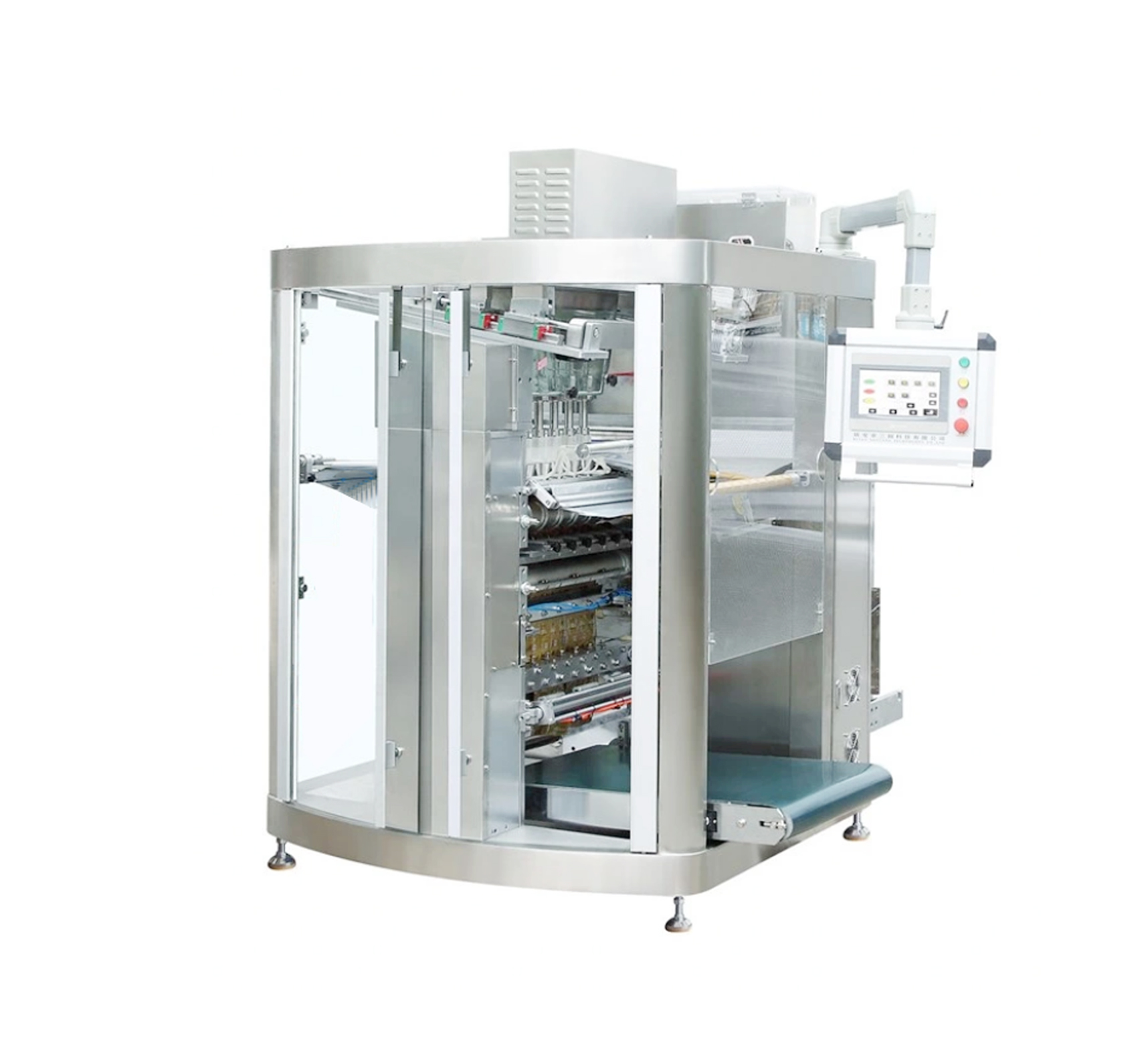

RP-FS500/900/1200 flat sachet powder packing machine

Category: Flat Sachet Machinery Labels: Flat sachet pack, Multilane, Powder pack

This machine is widely used for pharmaceutical, food, and health care powder products, such as pharmaceutical powder, herbal powder, freeze-dried powder, protein powder, sold beverage powder, milk powder, etc.
Servo motor driven, PLC control speed adjustable.
Easy operation, smooth performance, low noise, compact construction, and convenient maintenance.
Accuracy in page correcting, automatic counting, and photoelectric tracking systems is adopted to ensure the automatic correcting of the double- face printing design on packing bags.
Automatic sealing temperature control function, strong adaptability to package materials.

Advanced performance, high strength, low noise, compact structure, operates steadily, easy to maintain, and has a long service life.

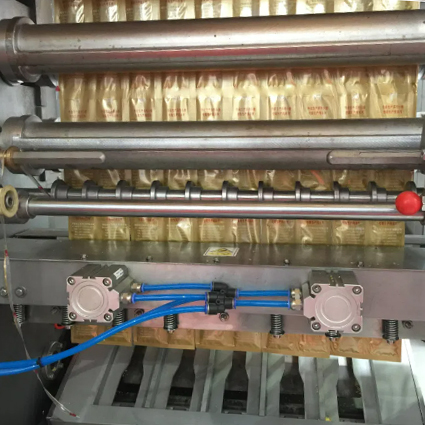

Adoption of high-precision positive-pressure rolling hot sealing sticks as sealing abrasives, fast packing speed, and flat bag shape.
For powder materials, it adopts material level detection and rotary feeding mechanisms to ensure that the height of the material level is always consistent and even.
Measurement is independently set on the man-machine interface and can be fine-tuned, with high metering accuracy, each column of bags can be easily and accurately measured and adjusted.
This model is specially equipped with automatic film walking and film damping mechanisms to ensure the stability of film straightness and tension.

Model	RP-FS500	RP-FS900	RP-FS1200
Lanes number	3-4	4-8	6-10
Max. reel width	500mm	900mm	1200mm
Sachet width range	60-105mm	60-105mm	60-105mm
Sachet length range	50-120mm	50-120mm	50-120mm
Filling volume	1-30ml	1-30ml	1-30ml
Capacity	30-50bags/min/lane	30-50bags/min/lane	30-50bags/min/lane
Standard power consumption	12kw	14KW	15KW
Standard air consumption	0.8MPA 0.8m3/min	0.8MPA 0.8m3/min	0.8MPA 0.8m3/min
Filling method	Auger filler	Auger filler	Auger filler
Power supply	380V 50HZ/60HZ , 3P	380V 50HZ/60HZ, 3P	380V 50HZ/60HZ, 3P
