RP-ST480/680 powder stick packaging machine

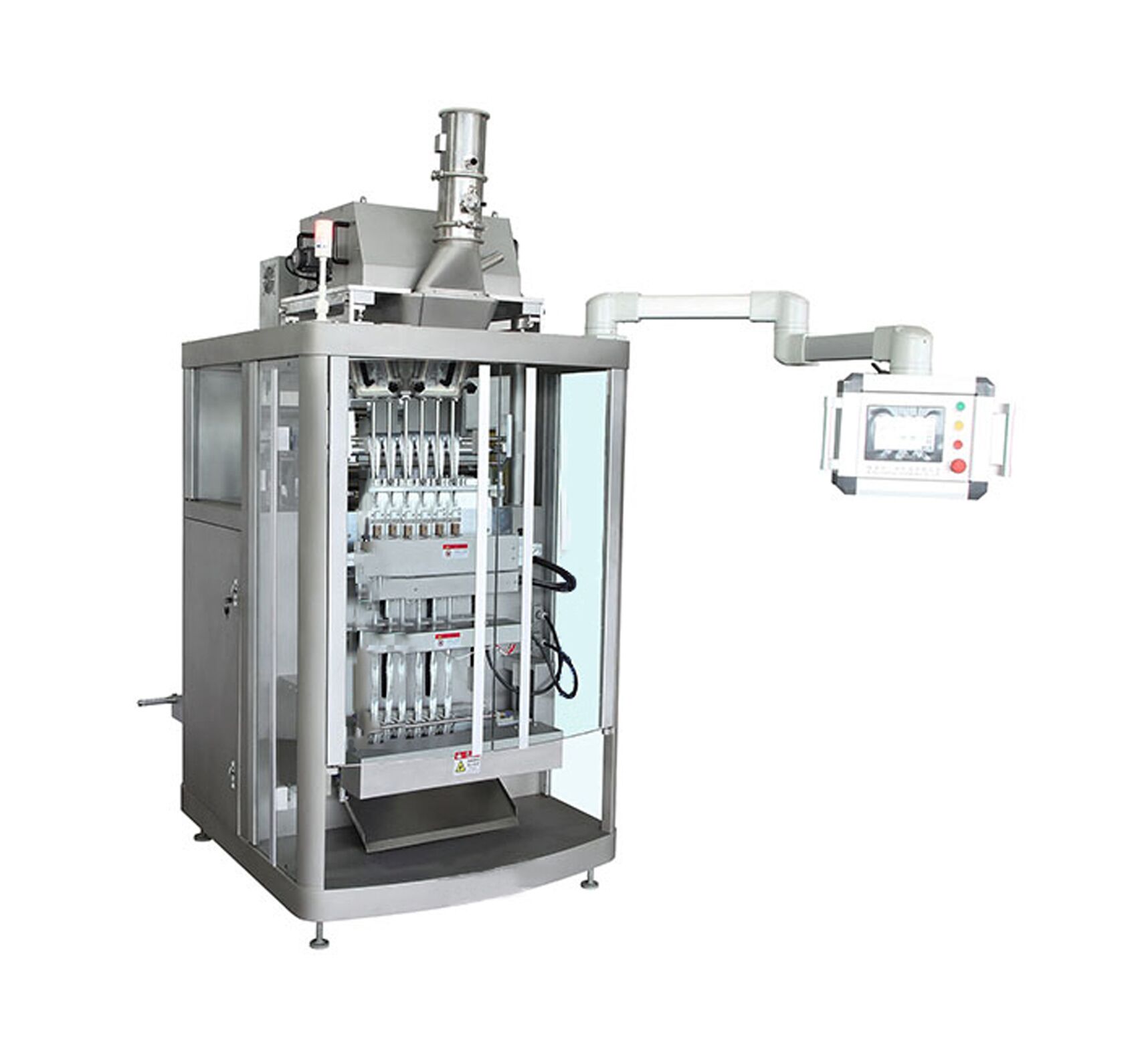

Multilane stick pack machine for powder

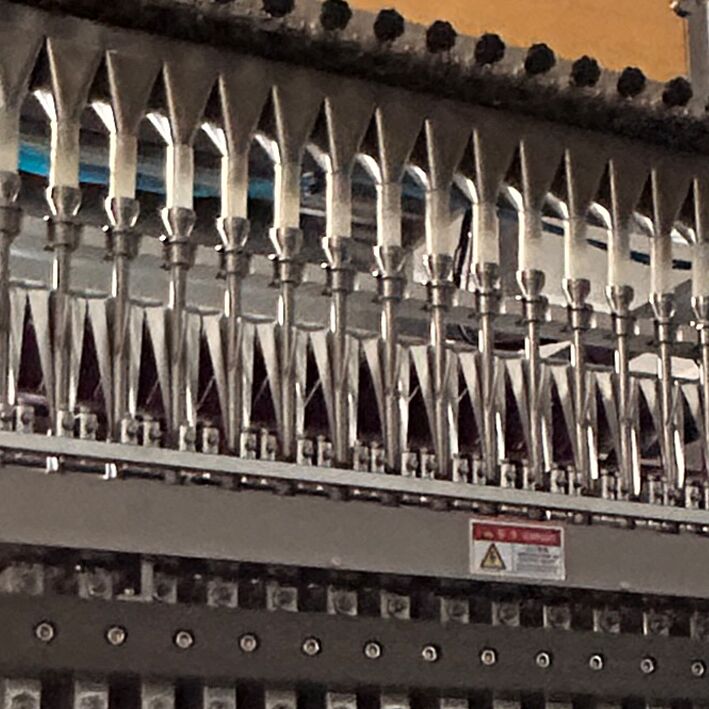

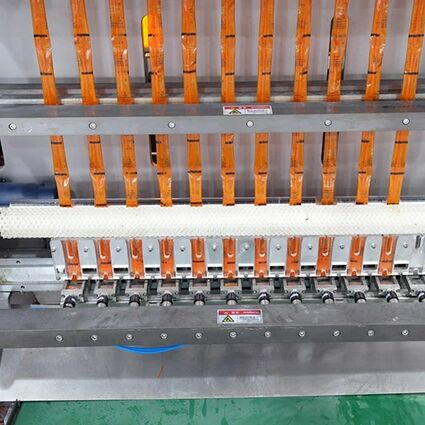

stickpack
rp st1050 powder stick packaging machine

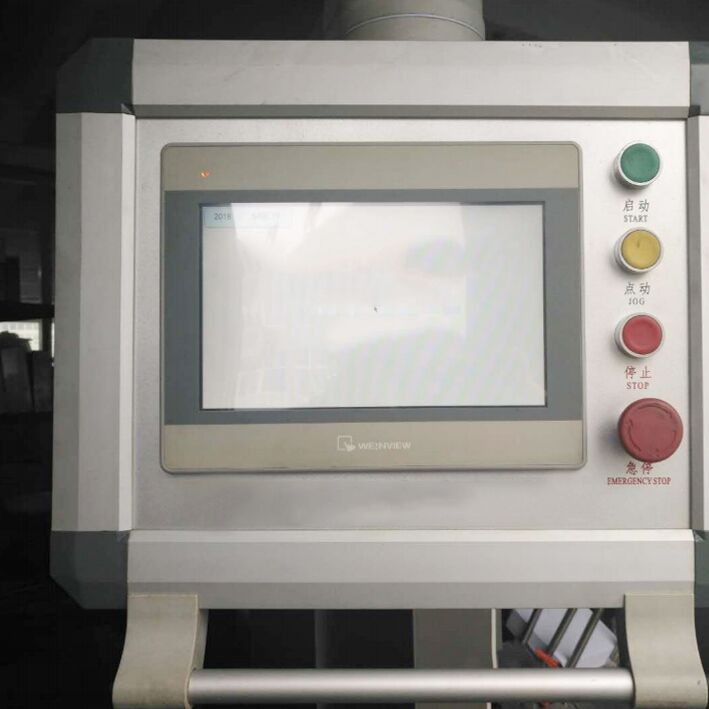

touch screen
Category: Labels: , ,

RP-ST480/680 powder stick packaging machine

  • This machine is widely used for packing pharmaceutical, food and health care powder products,such as herbal powder, freeze-dried powder, protein powder, sold beverage powder, milk powder etc.
  • International brand PLC and servo control system.
  • Servo control horizontal and vertical sealing, fast speed, low noise.
  • Film unwind and film tension control.
  • Special slide rail or guide device, high guiding accuracy.
Ask for a quote
Product details
  • Advanced performance, high strength, low noise, compact structure, operates steadily, easy to maintain, and has a long service life.
  • The whole machine adopts PLC control, servo tracking synchronous linkage, reliable performance, convenient operation, high degree of automatic control.
  • Adoption of high-precision 45-degree inclined vertical seal, fast packing speed,  and flat bag shape.
  • For powder materials, it adopts material level detection and rotary feeding mechanism to ensure that the height of the material level is always consistent and even.
Parameters
ModelRP-ST480RP-ST680
Lanes number4-66-10
Max. reel width480mm680mm
Stick pack width range24-45mm24-45mm
Stick pack length range20-60mm/90-150mm20-60mm/90-150mm
Capacity30-60bags/min/lane30-60bags/min/lane
Standard power consumption3.5-15kw3.5-15kw
Standard air consumption0.5-7MPA 0.5m3/min0.5-7MPA 0.5m3/min
Filling methodAuger fillerAuger filler
Power supply220V 50HZ/60HZ , 1P220V 50HZ/60HZ , 1P
