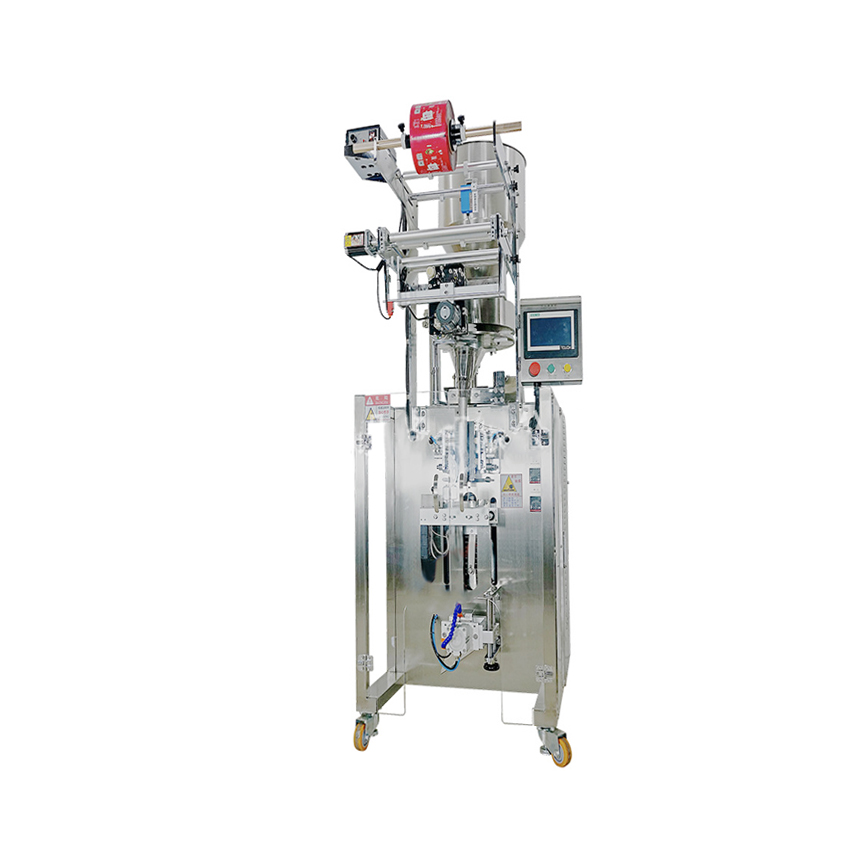

Single lane granule stick packaging machine

Category: Stick Pack Machinery Labels: Granule pack, single lane, Stick Pack

It is suitable for packing loose, non-viscous, powder above 120 mesh / granular material below 120 mesh in food, medicine, and chemical products.
Perfect packaging appearance – unique, advanced, and mature technical guarantee.
Fast, precise, and hygienic packaging in a short period.
Perfect automatic alarm protection function, reduce the loss to a low level and help troubleshoot in time.
The intelligent thermostat is used to ensure that the sealing is beautiful and smooth.
Volumetric measurement, high precision, and low cost.

The whole machine is composed of an imported programmable controller, and the touch screen constitutes the core of drive control, with excellent performance and simple operation.
Perfect automatic alarm protection function, reduce the loss to a low level and help troubleshoot in time.
Easy operation, smooth performance, low noise, compact construction, and convenient maintenance.
This machine can be made into a three-sided sealing bag type and back sealing bag type according to customer needs.
It is equipped with different measurement methods, with high precision and easy adjustment features.
The punching die is made of imported cutting knife material and has gone through six processing steps, so it is highly durable and has a long average service life.

Model	RG-SS220
Max.reel width(mm)	220
Lanes number	1
Bag width(mm)	20-100mm
Bag length(mm)	40-160mm
Capacity	20-40bpm
Standard power consumption	1.3KW
Air consumption	0.4-0.8Mpa 0.1m3/min

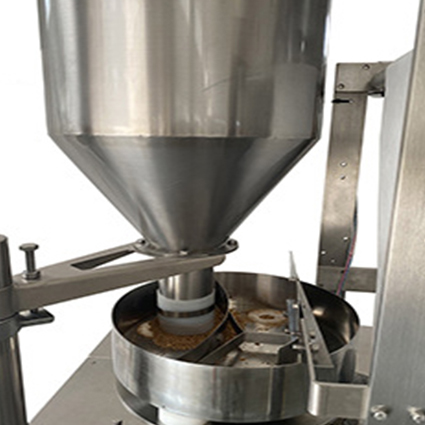

Filling method	Volumetric cups
Power supply	220V, single phase, 50/60HZ
Cutting method	Embossing or flat knife cutting, rounded bevel type, with triangular easy-to-tear mouth
Bag type	Back sealing bag
