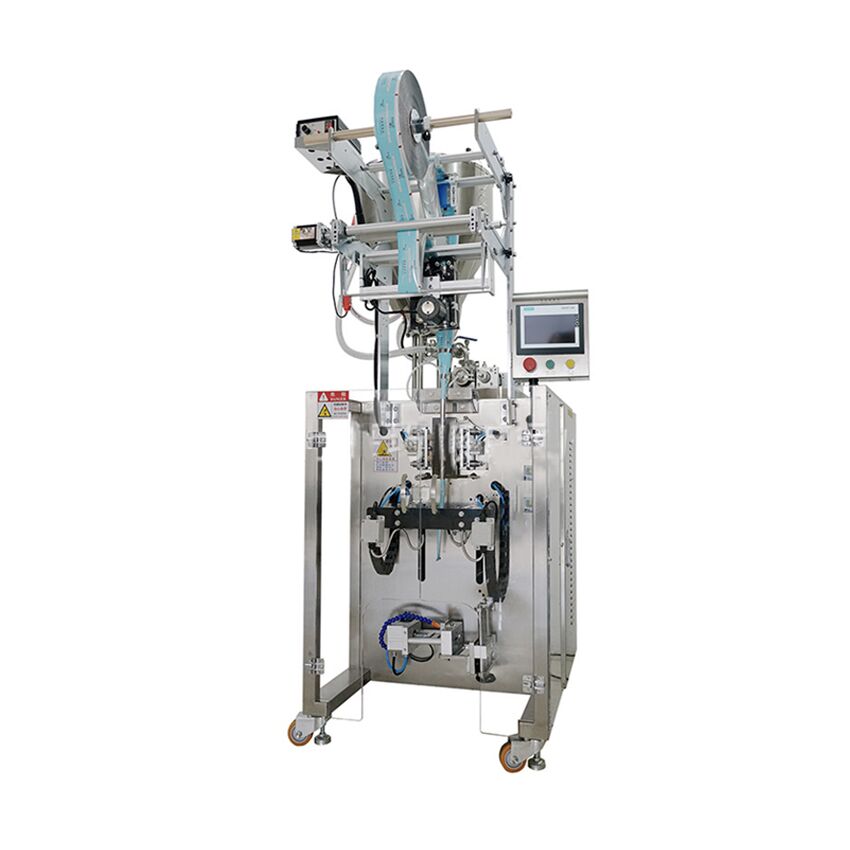

RL-SS120 stick liquid packing machine

It is suitable for packing different kinds of small-dose liquid or pastes packaging in daily chemical, food, healthcare, and pharmaceutical industries, such as mouthwash, energy drinks, enzymes, oral liquid, sauces, honey, cream, shampoo, etc.
Perfect packaging appearance – unique, advanced, and mature technical guarantee.
Fast, precise, and hygienic packaging in a short period.
Perfect automatic alarm protection function, reduce the loss to a low level and help troubleshoot in time.
The intelligent thermostat is used to ensure that the sealing is beautiful and smooth.

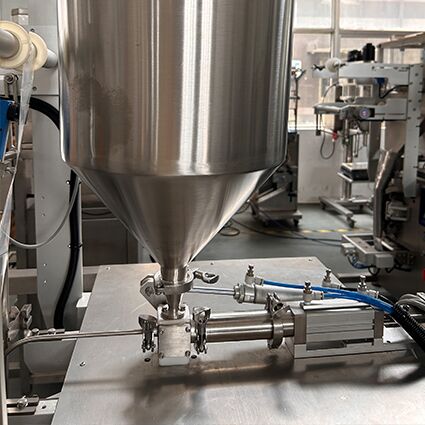

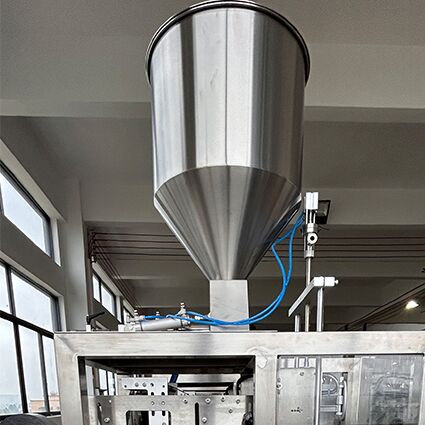

Use a high-precision liquid paste metering pump, easy to clean and maintain.

Product details

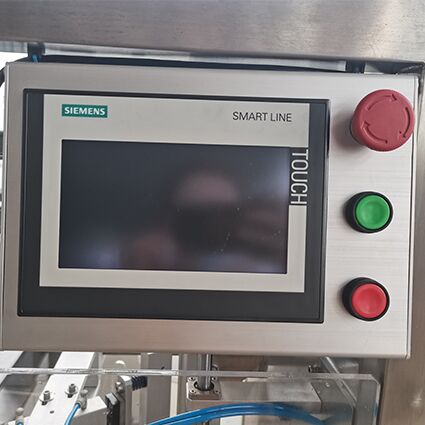

The whole machine is composed of an imported programmable controller, and the touch screen constitutes the core of drive control, with excellent performance and simple operation.
Perfect automatic alarm protection function, reduce the loss to a low level and help troubleshoot in time.
Easy operation, smooth performance, low noise, compact construction, and convenient maintenance.

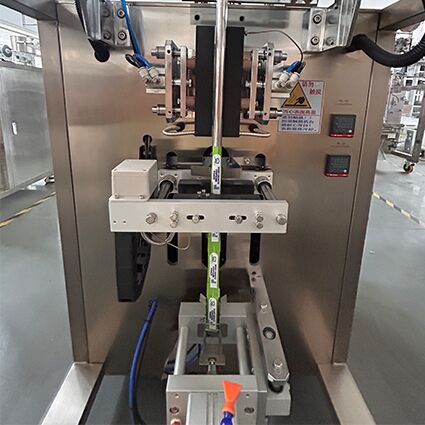

This machine can be made into a three-side sealing bag type and back sealing bag type according to customer needs.
It is equipped with different measurement methods, with high precision and easy adjustment features.
The punching die is made of imported cutting knife material and has gone through six processing steps, so it is highly durable and has a long average service life.

Parameters

Model	RL-SS120
Max.reel width(mm)	120
Lanes number	1
Bag width(mm)	15-55mm
Bag length(mm)	50-150mm
Capacity	20-40bpm
Standard power consumption	2.4KW
Air consumption	0.4-0.8Mpa 0.1m3/min
Filling method	Liquid pump
Power supply	220V, single phase, 50/60HZ
Cutting method	Embossing or flat knife cutting, rounded bevel type, with triangular easy-to-tear mouth
Bag type	Back sealing bag

Machine display video
